Reference Photos for CD144002 - C-141 Starlifter

C-141 European One camouflage scheme - top view

Here is the official camouflage drawing from USAF T.O.1-1-4.

Refueling markings / walkway markings

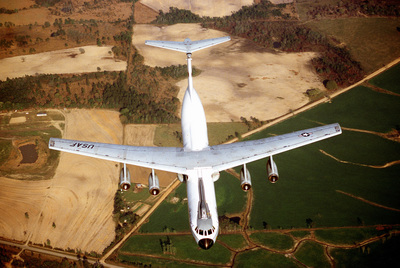

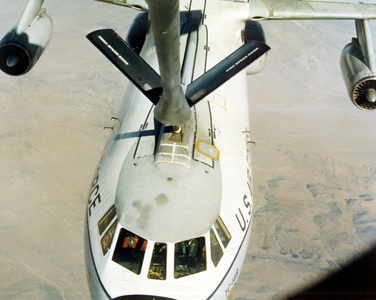

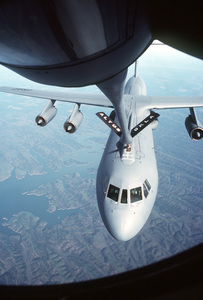

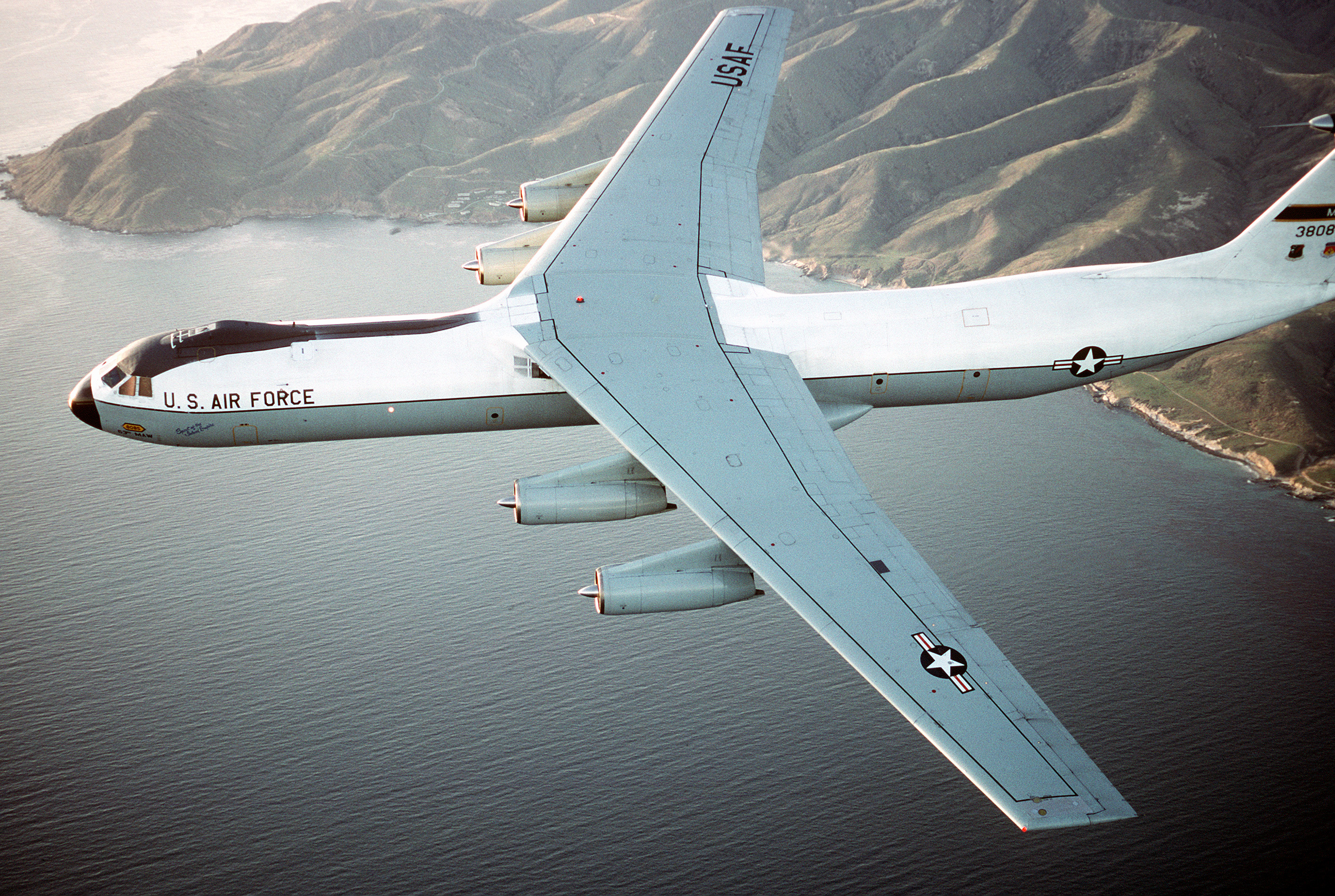

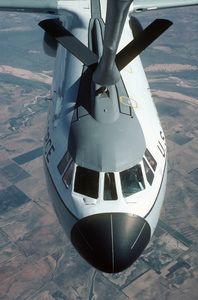

The refueling markings and walkways over the front fuselage are not well documented. We collected the photos below to clarify the application of these markings on both overall MAC Gray and white/gray schemes.

Click on the images to enlarge.
